SPR0318

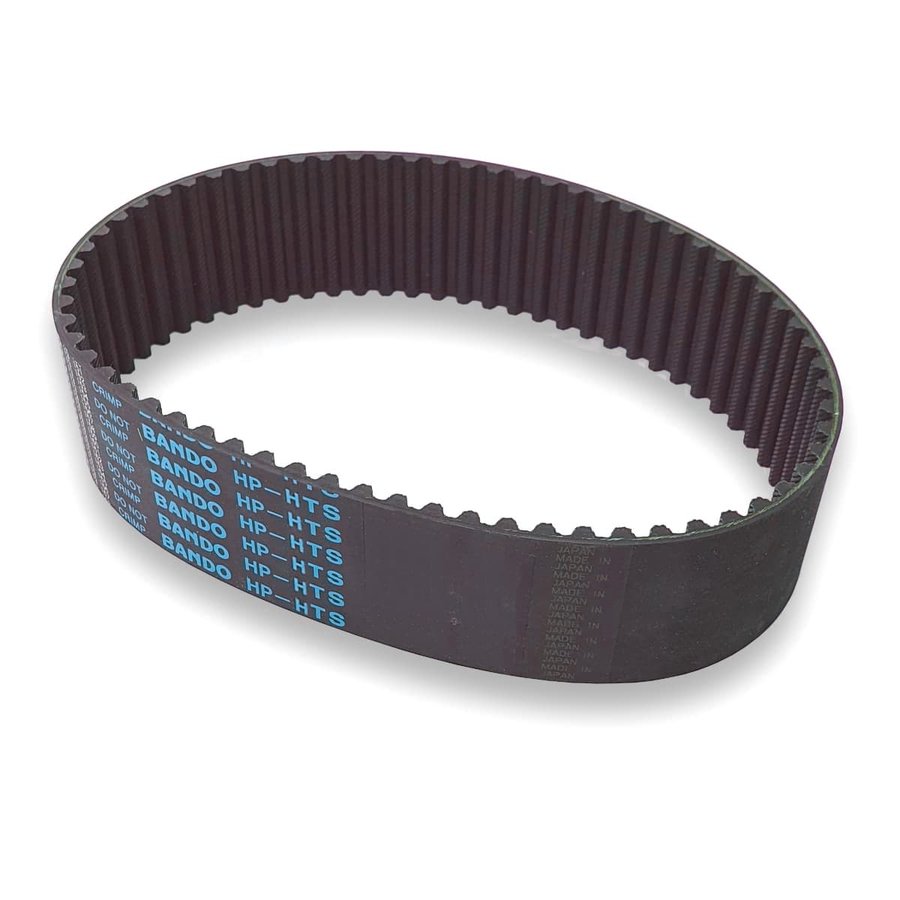

Timing Belt 1400x8x30 single teeth

Specifications

Length	1400 mm
Pitch	8M
Width	30 mm
Teeth	Single
Tooth count	175
Unit	PCS

How to read a timing belt size

A size like 1680-14M-50 means 1680 mm pitch length, 14M profile (14 mm between teeth, HTD curvilinear tooth) and 50 mm width. Tooth count = length ÷ pitch, so 1680-14M has 120 teeth.

Single vs double teeth

Double-teeth belts (marked D or DA) have teeth on both sides and drive pulleys on either face, for serpentine or reversing drives. They are not interchangeable with single-teeth belts of the same length.

Measuring a worn belt

Count the teeth and multiply by the pitch to get the length. Measure the width across the belt. Send us a photo of the printed marking if it is still readable.

Other sizes See all ›

Part no.	Description	Length	Pitch	Width	Teeth	Tooth count	Stock	Price
SPR0170	Timing Belt 1400-8M-30 Singal teeth	1400 mm	8M	30 mm	Single	175	In stock	NPR 948.90
SPR0222	Timing Belt 1400x8x30 single teeth	1400 mm	8M	30 mm	Single	175	In stock	Quote
SPR0277	Timing Belt 1400x8x30 single teeth	1400 mm	8M	30 mm	Single	175	Sourced	Quote
SPR0307	Timing Belt 1400x8x30 single teeth	1400 mm	8M	30 mm	Single	175	Sourced	Quote
SPR0410	Timing Belt 1360x8x30 single teeth	1360 mm	8M	30 mm	Single	170	In stock	Quote
SPR0313	Timing Belt 1350x8x30 single teeth	1350 mm	8M	30 mm	Single	—	Sourced	Quote
SPR0157	Timing Belt 1480-8M-30 (Singal teeth)	1480 mm	8M	30 mm	Single	185	In stock	NPR 1,212.86
SPR0296	Timing Belt 1320-8M-40 single teeth	1320 mm	8M	40 mm	Single	165	In stock	NPR 1,652.07
SPR0148	Timing Belt 1520-8M-30 (Singal teeth)	1520 mm	8M	30 mm	Single	190	In stock	NPR 1,218.01
SPR0196	Timing Belt 1280-8M-40 Singal teeth	1280 mm	8M	40 mm	Single	160	Sourced	Quote
