SPR0004

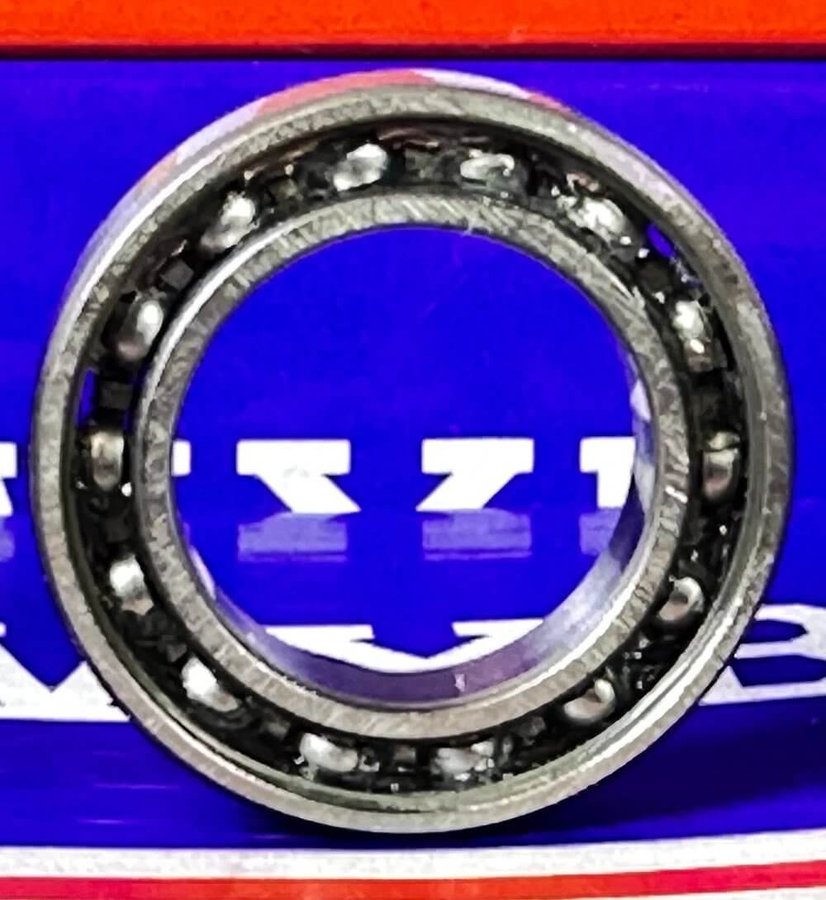

Thin Series Ball Bearing 6804
Specifications
| Bearing No. | 6804 |
|---|---|
| Width | 7 mm |
| Bore | 20 mm |
| OD | 32 mm |
| Series | Thin section 68 series |
| Seal | Open |
| Unit | PCS |
Equivalent part numbers
Same ISO size; brand notation differs. Tell us if you need a specific brand.
| FAG | 6804 |
|---|---|
| NSK | 6804 |
| NTN | 6804 |
| SKF | 6804 |
Bearing numbers
The bearing number fixes the size, so the same number fits whatever the brand. In 60xx, 62xx and 68xx bearings the last two digits give the bore: 00 = 10 mm, 01 = 12, 02 = 15, 03 = 17, and from 04 up multiply by 5 (6204 = 20 mm bore).
Seal suffixes
Open = no seal. Z = one metal shield; 2Z or ZZ = shields on both sides. 2RS = rubber seals on both sides (best against dust and washdown).
Other sizes See all ›
| Part no. | Description | Bearing No. | Bore | OD | Width | Seal | Stock | Price | RFQ |
|---|---|---|---|---|---|---|---|---|---|
| SPR0441 | Thin Series Ball Bearing 6804 | 6804 | 20 mm | 32 mm | 7 mm | Open | In stock | NPR 354 | |
| SPR0446 | Ball bearing-6808Z | 6808-Z | 40 mm | 52 mm | 7 mm | Z (one shield) | Sourced | Quote |
